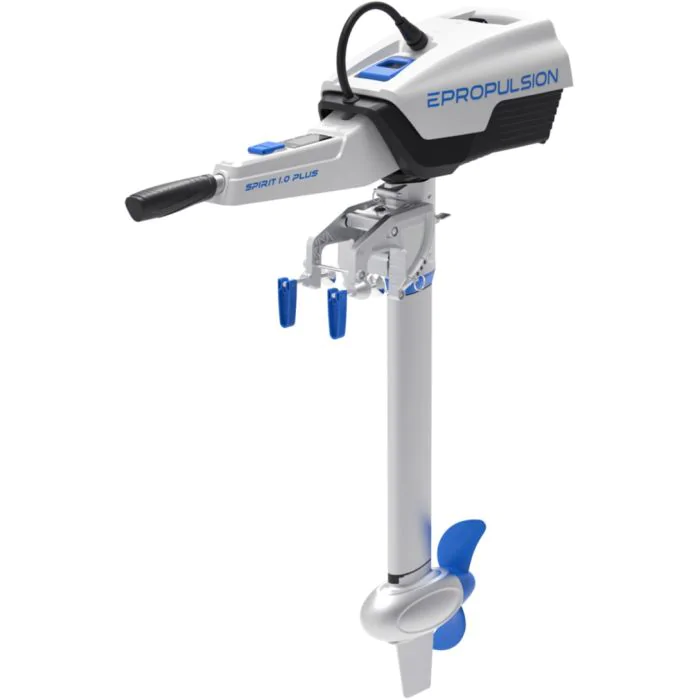

The new Spirit 1.0 Plus outboard motor offers increased autonomy compared to the original Spirit 1.0—without any change in size, weight, or power. Equipped with a 1276 Wh lithium battery, it delivers 25% more capacity than the original 1028 Wh battery and up to 50% more range than other electric outboards of the same class—even at full speed.
Currently, the Spirit 1.0 Plus is the electric outboard with the longest integrated battery range on the market. It is ideal for powering dinghies, tenders, sailboats, and small boats up to 1.5 tons.
Power equivalent:
Propulsion: 3 HP petrol outboard
Thrust: Comparable to 4 HP petrol outboard
Note: The batteries of Spirit 1.0 Plus and Spirit 1.0 are not interchangeable.
Included in the package:
Rechargeable battery

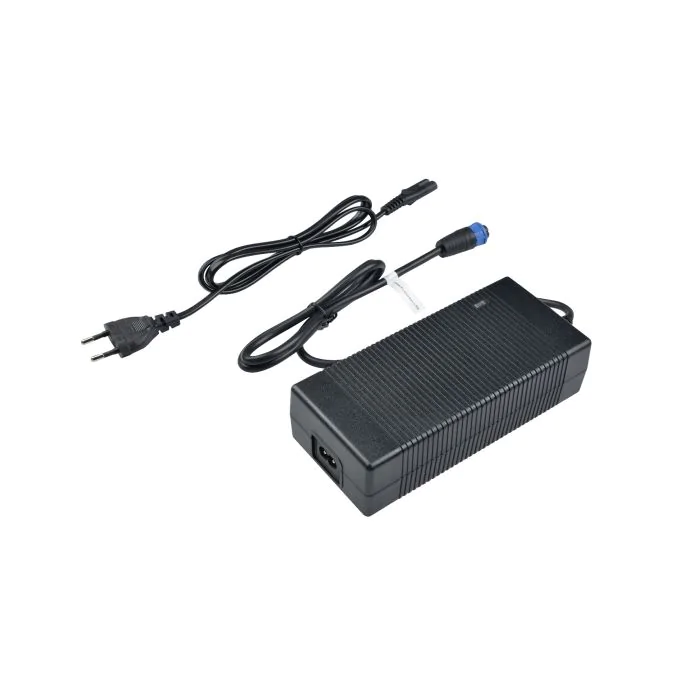

Dedicated charger (do not use another charger)
Propeller
Magnetic safety key
User manual
Warranty:
Motor: 2 years
Battery: 1 year
Technical Specifications – Motor:
Input power: 1 kW
Propulsion power: 500 W
Max efficiency: 55%
Static thrust: 66 lbs
Nominal voltage: 48 V
Nominal current: 20.8 A
Total weight (with battery): 19.1 kg
Shaft lengths (mm): 525 (extra-short), 625 (short), 750 (long)
Propeller speed max: 1200 RPM
Steering: Tiller
Rotation: 360°
Trim angles (manual): 0°, 7°, 14°, 21°, 70°
Tilt: Manual, 75°
Forward/reverse: Continuous
Integrated display: Yes
Technical Specifications – Battery:
Type: 1276 Wh Lithium Polymer
Nominal voltage: 45.6 V
Full charge voltage: 52.2 V
Cut-off voltage: 33.6 V
Temperature range:
Charging: 0°C to 45°C
Discharging: -20°C to 60°C
Cycle life: 800 cycles (to 80% capacity)
Weight: 8.7 kg
Technical Sheet
Brand: E PROPULSION
Control system: Tiller
Voltage: 48 V
